3M™ Thermally Conductive Silicone Interface Pads

Thermally Conductive Pads used to transfer heat from hot surfaces or devices to cooler surface region of assembled devices for applications requiring gap filling and superior thermal performance.

Make a Selection
	3M™ Thermally Conductive Silicone Interface Pad 5516 Designed to provide heat transfer path between heat generating components and heat sinks, heat spreaders or other cooling devices. Consists of highly conformable, slightly tacky silicone elastomer sheet filled with thermally conductive ceramic particles.
	3M™ Thermally Conductive Silicone Interface Pad 5516S Same as 3M Pad 5516 but with a polymeric permanent film on one side to be used as a non-tacky surface for ease of reworking an assembly. Thermal Conductivity and Impedance slightly changes with addition of the film. Dielectric strength is improved.
	3M™ Thermally Conductive Silicone Interface Pad 5549S Designed to provide heat transfer path between heat generating components and heat sinks, heat spreaders or other cooling devices. Consists of highly conformable, slightly tacky silicone elastomer sheet filled with thermally conductive ceramic particles.
	3M™ Thermally Conductive Silicone Interface Pad 5549S Same as 3M Pad 5519 but with a polymeric permanent film on one side to be used as a non-tacky surface for ease of reworking an assembly. Thermal Conductivity and Impedance slightly changes with addition of the film. Dielectric strength is improved.
	3M™ Thermally Conductive Silicone Interface Pad 5583S Polyester film supported super soft, silicone elastomer with thermal conductivity of 1.0 W/mk. Conformable at low pressure to minimize stress on components and fill gaps. Good dielectric properties. Handles easily without crumbling.
	3M™ Thermally Conductive Silicone Interface Pad 5584 Soft, silicone elastomer with thermal conductivity of 1.1 W/mk. Conformable at low pressure to minimize stress on components and fill gaps. Good dielectric properties. Handles easily without crumbling.
	3M™ Thermally Conductive Silicone Interface Pad 5584 Same as 3M Pad 5592 but with a polymeric permanent film on one side to be used as a non-tacky surface for ease of reworking an assembly. Thermal Conductivity and Impedance slightly changes with addition of the film. Dielectric strength is improved.
	3M™ Thermally Conductive Silicone Interface Pad 5586 Soft, silicone elastomer with thermal conductivity of 1.6 W/mk. Conformable at low pressure to minimize stress on components and fill gaps. Good dielectric properties. Handles easily without crumbling.
	3M™ Thermally Conductive Silicone Interface Pad 5595S Same as 3M Pad 5595 but with a polymeric permanent film on one side to be used as a non-tacky surface for ease of reworking an assembly. Thermal Conductivity and Impedance slightly changes with addition of the film. Dielectric strength is improved.
	3M™ Thermally Conductive Silicone Interface Pads 5514 Designed to provide heat transfer path between heat generating components and heat sinks, heat spreaders and other cooling devices. Consists of a conformable silicone elastomer sheet filled with thermally conductive ceramic fillers.
	3M™ Thermally Conductive Silicone Interface Pads 5515 3M Thermally Conductive Silicone Interface Pads 5515-20 and 5515-25 are designed to provide a preferential heat transfer path between heat generating components and cooling device for thin thickness.(0.2-0.25 mm) requirement.
	3M™ Thermally Conductive Silicone Interface Pads 5515S Designed to provide heat transfer path between heat generating components and heat sinks, heat spreaders and other cooling devices. Consists of a conformable silicone elastomer sheet filled with thermally conductive ceramic fillers. The 5515S also includes a polyimide film layer for higher dielectric strength, abrasion resistance and improved handling.

3M™ Thermally Conductive Acrylic Interface Pads

Thermally Conductive Pads used to transfer heat from hot surfaces or devices to cooler surface region of assembled devices for applications requiring gap filling and non-silicone construction.

Make a Selection
	3M™ Thermally Conductive Acrylic Interface Pad 5567H Highly conformable, slightly tacky acrylic elastomer sheet filled with conductive particles. Designed to provide preferential heat transfer path between heat generating components and heat spreaders with lower odor for concerning about the smells.

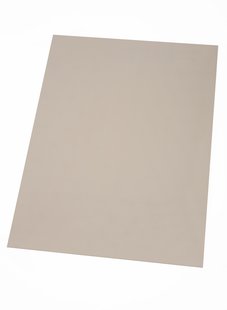

	3M™ Thermally Conductive Acrylic Interface Pad 5570 Highly conformable and tacky acrylic elastomer sheet filled with conductive ceramic particles. Designed to provide preferential heat transfer path between heat generating components and heat spreaders as aluminum heat sink with moderate K.
	3M™ Thermally Conductive Acrylic Interface Pad 5571 3M™ Thermally Conductive Acrylic Interface Pad 5571 is designated to provide a preferential heat transfer path between heat generating components like integrated circuit chip and heat spreaders as aluminum heat sink.
	3M™ Thermally Conductive Acrylic Interface Pad 5589H 3M™ Thermally Conductive Interface Pad 5589H is a thermally conductive acrylic elastomer based interface pad. It has very high thermal conductivity, good electrical insulation properties and is ideally suited for applications that require non-silicone properties. 2.0 W/mK
	3M™ Thermally Conductive Acrylic Interface Pad 5590H A thermally conductive soft and acrylic elastomer based interface pad. It has very high thermal conductivity, good electrical insulation properties and is ideally suited for applications that require non-silicone properties. 3.0 W/m-K
